Introduction

• Created on: 3 January 2022
• Developed by: Dreams Technologies
• Support via email: [email protected]
• Support via Codecanyon: Take me there

• Servbook Book your needed service and provider in one click! Easy Booking is compatible with simple, ideal solution.

Requirements

Server Requirements

Make sure your server meets the following requirements:

• PHP 7.4 or Above
• MySQL 5.6+
• Apache

Application areas

An XAMPP server can be installed and used with a single executable file quickly and easily, functioning as a local test system for Linux, Windows, and Mac OS X. The software packet contains the same components that are found on common web servers. Developers have the chance to test out their projects locally and to transfer them easily to productive systems. But XAMPP isn’t suitable to use as a public server, because many safety features have been deliberately left out to simplify and speed up the system for testing.

Installing XAMPP

Our XAMPP tutorial will take you through the installation process for the software package on Windows. If you’re using Linux or Mac OS X, then the steps listed below for the installation process may differ.

Step 1: Download

XAMPP is a release made available by the non-profit project Apache Friends. Versions with PHP 5.5, 5.6, or 7 are available for download on the Apache Friends Website.

Step 2: Run .exe file

Once the software bundle has been downloaded, you can start the installation by double clicking on the file with the endingexe.

Step 3: Deactivate any antivirus software

Since an active antivirus program can negatively affect the installation process, it’s recommended to temporarily pause any antivirus software until all XAMPP components have successfully been installed.

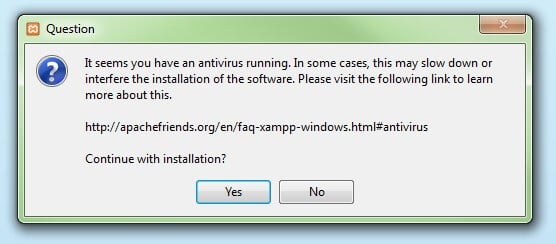

Before installing XAMPP, it is advisable to disable the anti-virus program temporarily

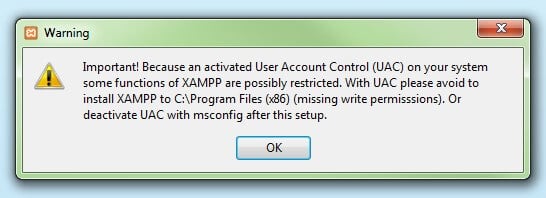

Step 4: Deactivate UAC

User Account Control (UAC) can interfere with the XAMPP installation because it limits writing access to the C: drive, so we recommend you deactivate this too for the duration of the installation process. To find out how to turn off your UAC, head to the Microsoft Windows support pages.

User account control can affect the installation of XAMPP

Step 5: Start the setup wizard

After you’ve opened the .exe file (after deactivating your antivirus program(s) and taken note of the User Account Control, the start screen of the XAMPP setup wizard should appear automatically. Click on ‘Next’ to configure the installation settings.

You can start the setup on the startup screen

Step 6: Choose software components

Under ‘Select Components’, you have the option to exclude individual components of the XAMPP software bundle from the installation. But for a full local test server, we recommend you install using the standard setup and all available components. After making your choice, click ‘Next’.

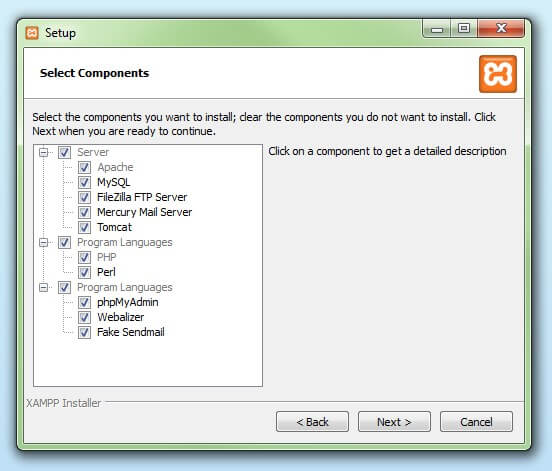

In the dialog window entitled 'select components', you can choose the software components before installation

Step 7: Choose the installation directory

In this next step, you have the chance to choose where you’d like the XAMPP software packet to be installed. If you opt for the standard setup, then a folder with the name XAMPP will be created under C:\ for you. After you’ve chosen a location, click ‘Next’.

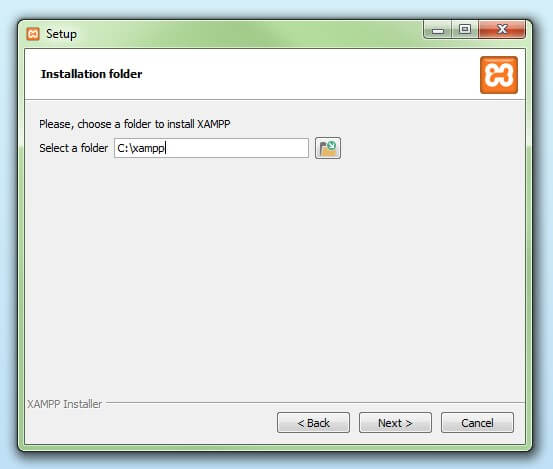

For the next step, you need to select the directory where XAMPP should be installed

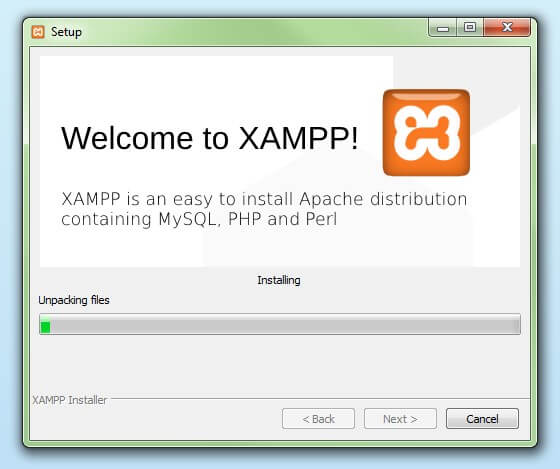

Step 8: Start the installation process

Once all the aforementioned preferences have been decided, click to start the installation. The setup wizard will unpack and install the selected components and save them to the designated directory. This process can take several minutes in total. You can follow the progress of this installation by keeping an eye on the green loading bar in the middle of the screen.

According to the default settings, the selected software components are unpacked and installed in the target folder

Step 9: Windows Firewall blocking

Your Firewall may interrupt the installation process to block the some components of the XAMPP. Use the corresponding check box to enable communication between the Apache server and your private network or work network. Remember that making your XAMPP server available for public networks isn’t recommended.

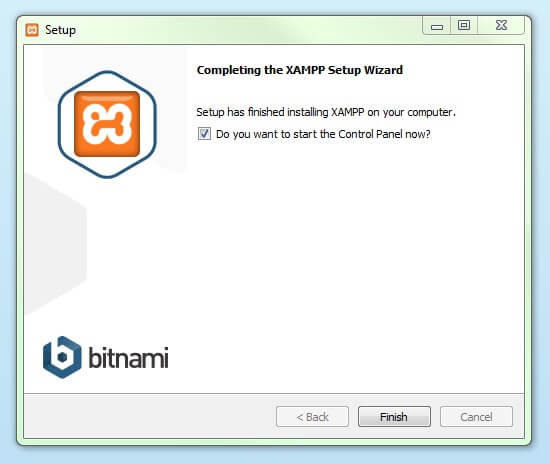

Step 10: Complete installation

Once all the components are unpacked and installed, you can close the setup wizard by clicking on ‘Finish’. Click to tick the corresponding check box and open the XAMPP Control Panel once the installation process is finished.

By clicking on 'finish', the XAMPP Setup Wizard is completed

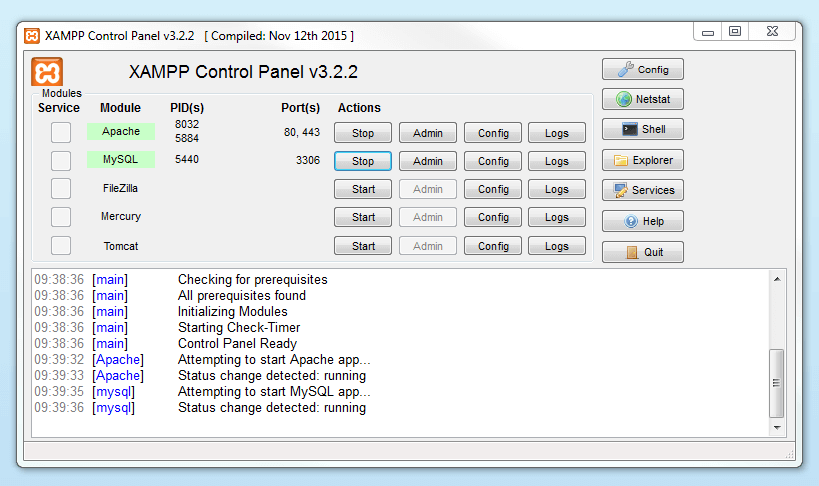

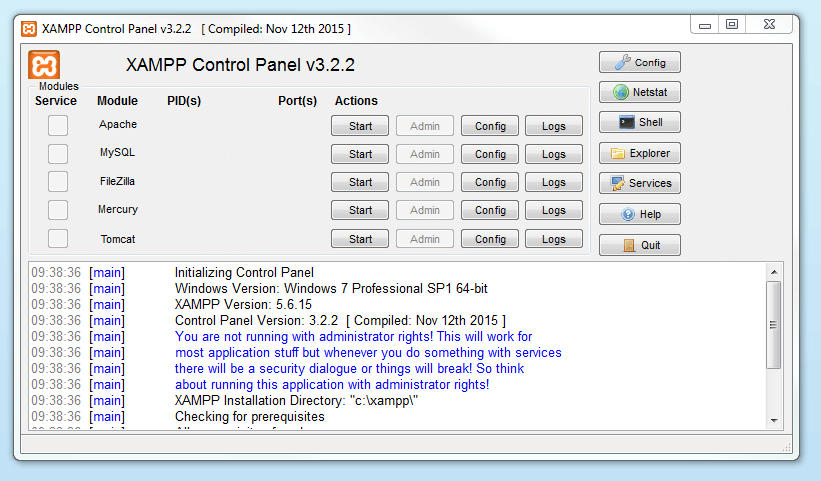

The XAMPP Control Panel

Controls for the individual components of your test server can be reached through the XAMPP Control Panel. The clear user interfacelogs all actions and allows you to start or stop individual modules with a single. The XAMPP Control Panel also offers you various other buttons, including:

• Config: allows you to configure the XAMPP as well as the individual components
• Netstat: shows all running processes on the local computer
• Shell: opens a UNIX shell
• Explorer: opens the XAMPP folder in Windows Explorer
• Services: shows all services currently running in the background
• Help: offers links to user forums
• Quit: closes the XAMPP Control Panel

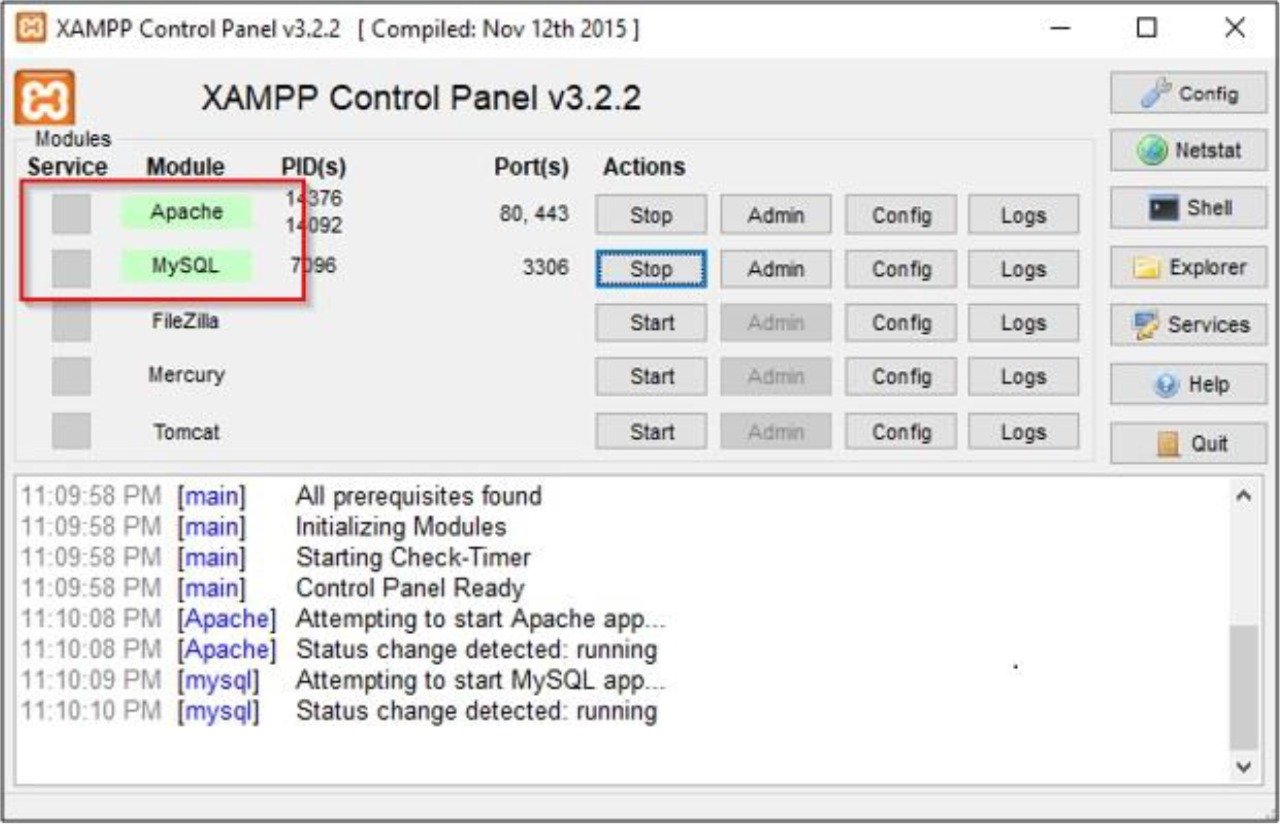

In the Control Panel, you can start and stop individual modules Starting modules

Individual modules can be started or stopped on the XAMPP Control Panel through the corresponding buttons under ‘Actions’. You can see which modules have been started because their names are highlighted green under the ‘Module’ title.

An active module is marked in green in the Control Panel

How to run PHP program in Xampp step-by-step?

• Write this program in a notepad and save it as file.php or any other name.

php echo " hello ashok"

• After completion of the installation, you can use the XAMPP Control Panel to start/ stop all servers.
• Start Mysql and Apache servers.

• Copy file.php to htdocs (C:/Program Files/XAMPP/htdocs)
• You can also create any folders inside htdocs folder and save our codes over there.

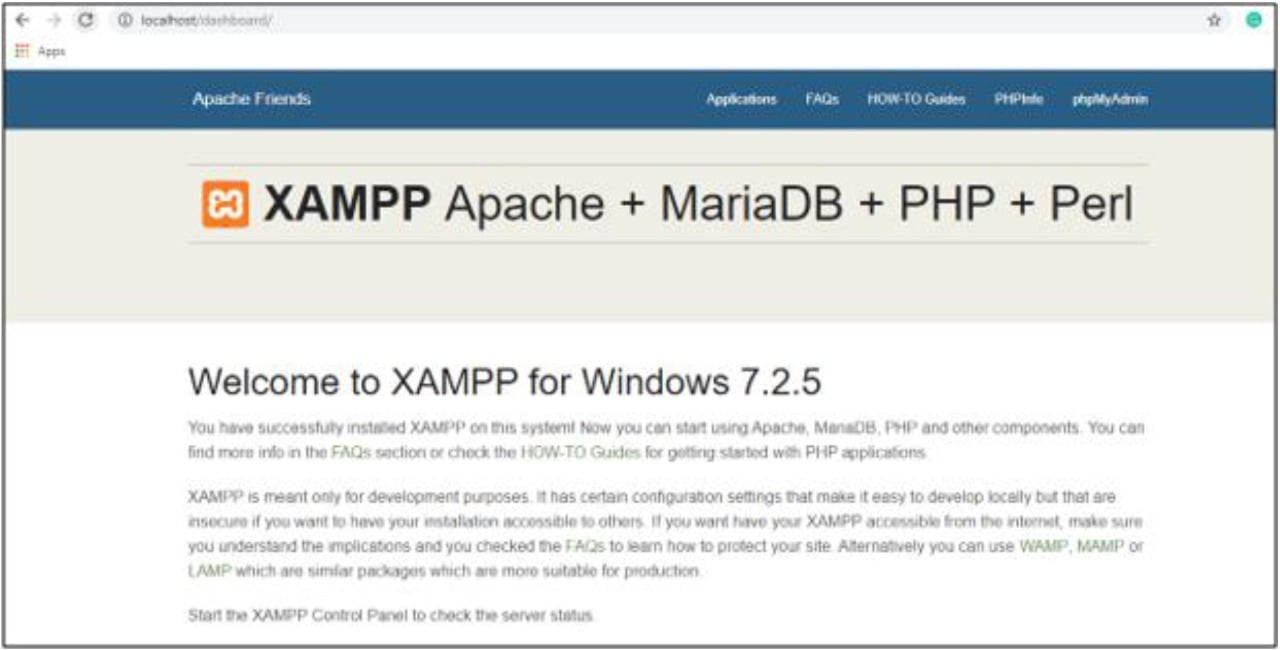

In order to get the dashboard for localhost: search http://localhost in any browser.

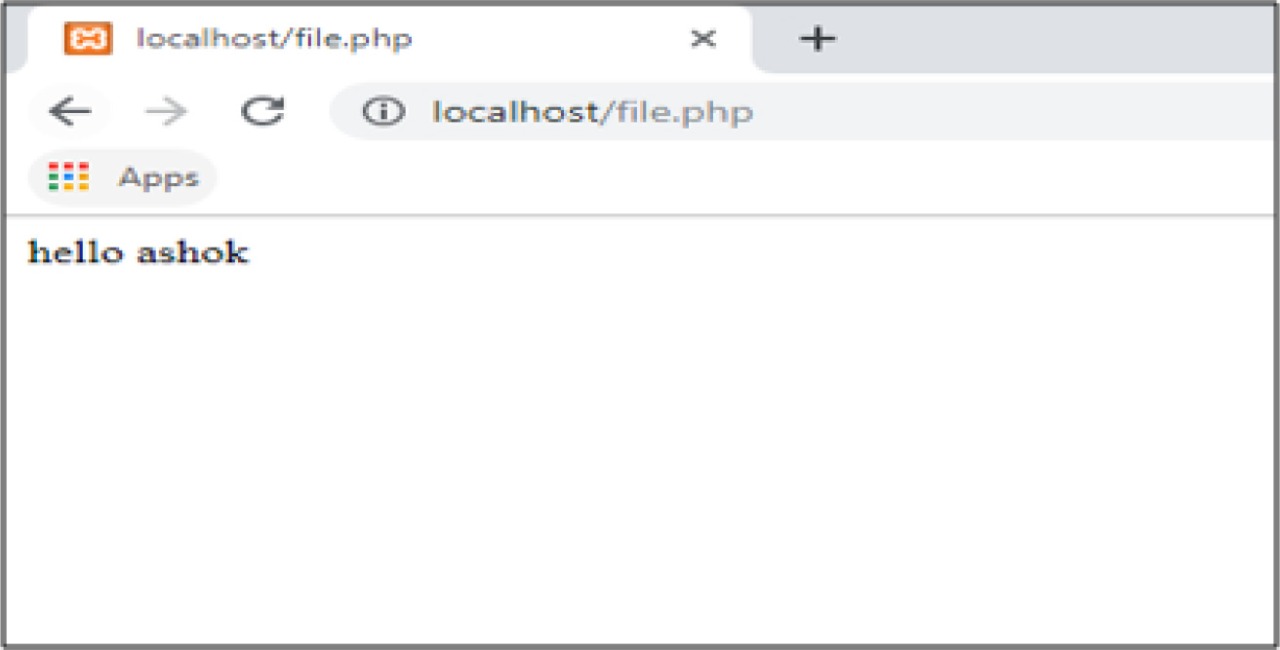

• Now to run your code, open localhost/file.php then it gets executed.

I hope you have understood about XAMP, the installation of XAMP and how to run a PHP program in Xampp.

Php Requirements

There are several PHP settings good to know to setup before you try upload any file.

memory_limit = 512M
upload_max_filesize = 128M
post_max_size = 128M
max_file_uploads = 50
max_execution_time = 3600

File Structure

File Structure - is the way you organize your folders and files on your computer. Keeping all your documents under one folder is a great way to keep organized and make things easy for backing up your computer.

├── serve_book/
  │   ├── application /
  │   │         ├── config/
  │   │         ├── controllers/
  │   │         ├── core/
  │   │         ├── helpers/
  │   │         ├── language/
  │   │         ├── libraries/
  │   │         ├── migrations/
  │   │         ├── models/
  │   │         ├── views/
  │   │         ├── .htaccess
  │   │         ├── index.html
  │   ├── assets /
  │   ├── engine/
  │   ├── storage/
  │   ├── uploads/
  │   ├── vendor/
  │   ├── .htaccess
  │   ├── index.php

Project Setup Guide

Step 1:

Go to xampp control panel:

Xampp control panle file path : C:\xampp\xampp-control.exe

To run this exe file,to start apache and Mysql

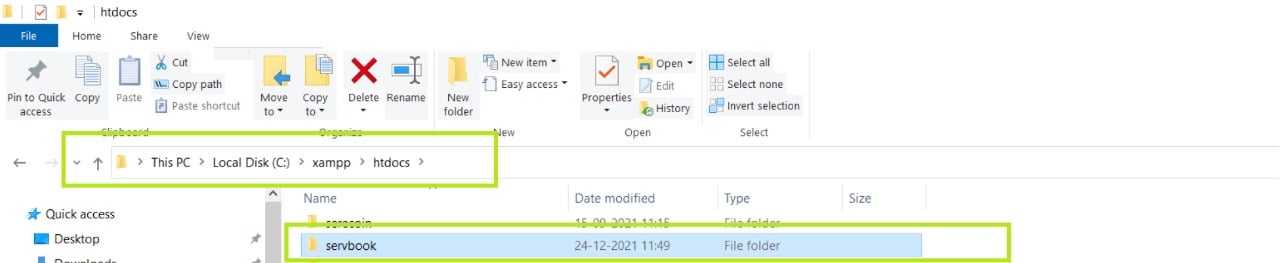

Step 2:

Unzip project source code to move to htdocs

(C:/Program Files/XAMPP/htdocs)

Ex: Assume project source code folder name: servbook.zip

Unzip and Move files to “C:\xampp\htdocs\servbook” this path

Step 3:

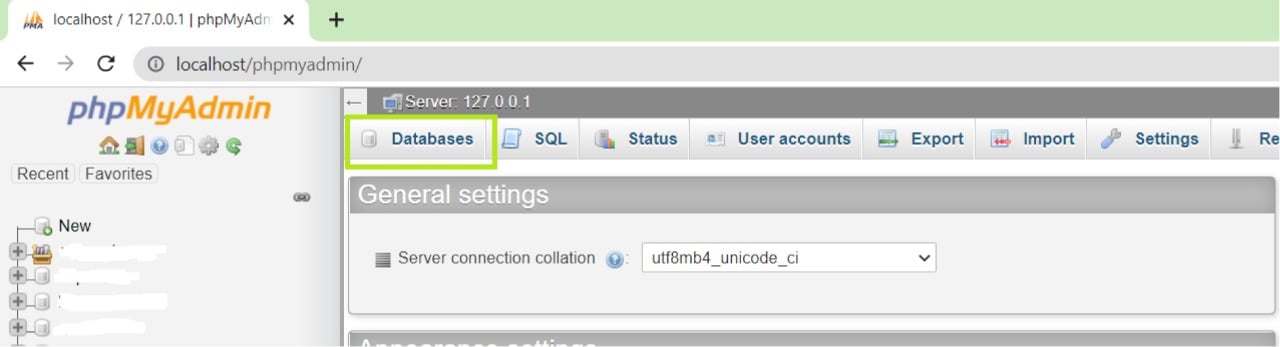

Import SQL file to phpmyadmin panel

Go to : http://localhost/phpmyadmin/

Step 4:

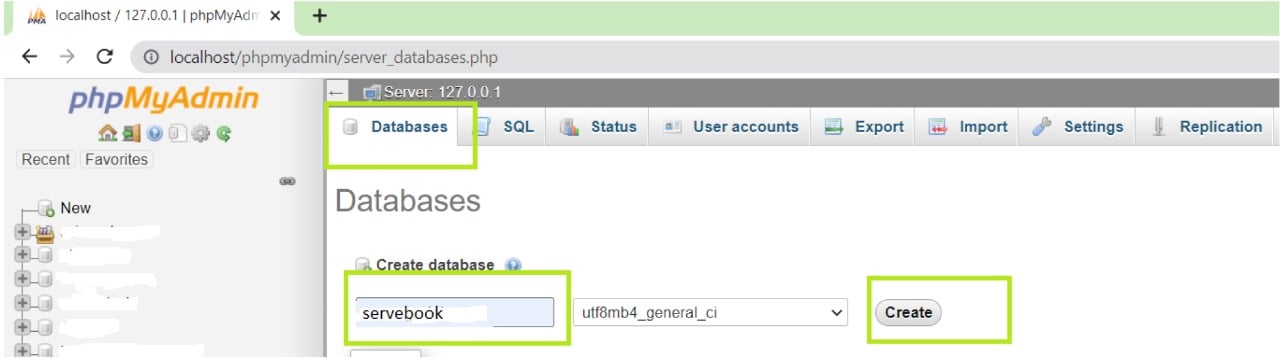

Create data base:

Click “database” menu, then enter new db name as “servbook”

Note: DB name must be same as above mentioned, otherwise issue thrown while run project.

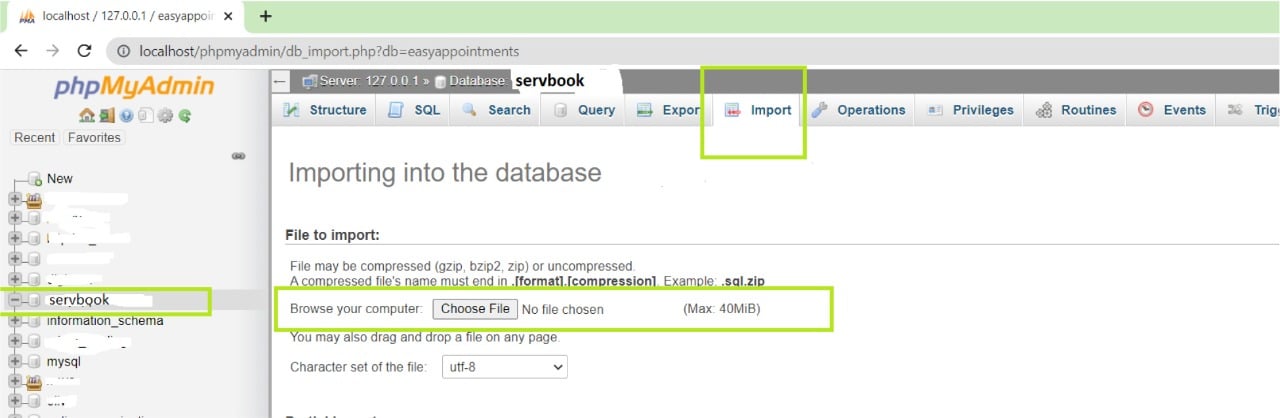

Step 5:

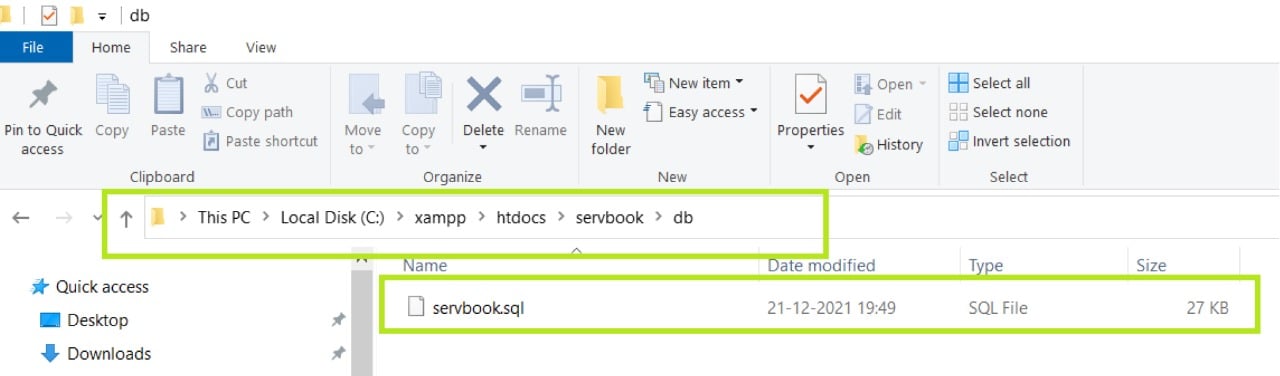

Click “import” option to choose project SQL file

Go to: project source folder to find “servbook.sql”

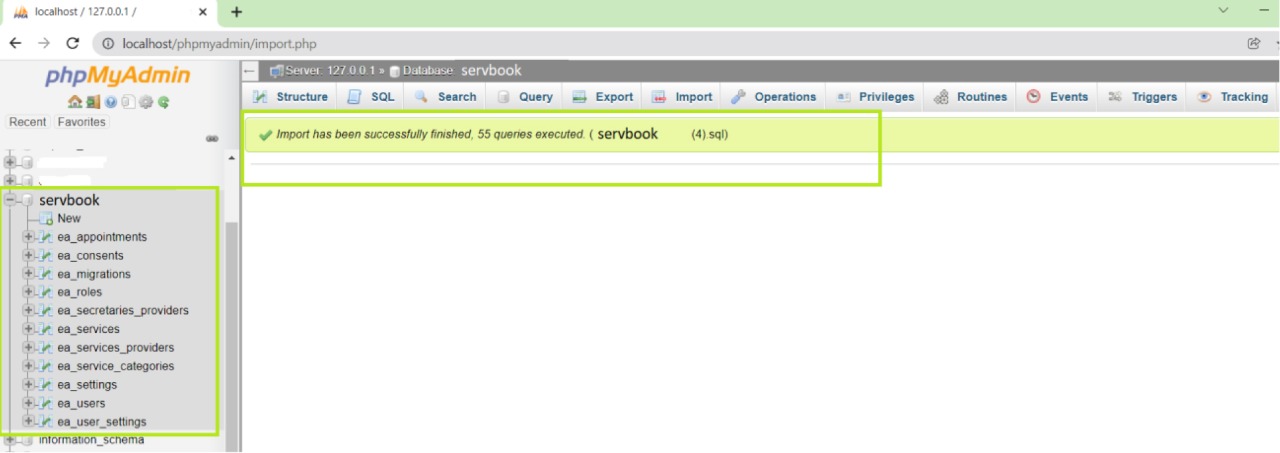

Import completed:

After successfully import db in “phpmyadmin” section then go to browser

Step 6:

Run this url in browser:

http://localhost/servbook/

Change DB and Server Path: (optional)

If you want to change DB name and Base URL follow below steps, otherwise skip this process,

Change Database configurations:

Ex: C:\xampp\htdocs\servbook\application\config\database.php

Code:

'hostname' => 'localhost', // Host name

'username' => 'root', //phpmyadmin user name

'password' => '', //phpmyadmin password

'database' => 'servbook', //DB name

Change Server configuration:

If you want to change server path, use this file to change

Ex: C:\xampp\htdocs\servbook\application\config\config.php

Code:

$config['base_url'] = 'http://localhost/New folder name/';

Google Calendar configuration:

If you want to enable google calendar, use this file to change

Ex: C:\xampp\htdocs\servbook\application\config\google.php

Code:

$config['google_sync_feature'] = TRUE;

$config['google_product_name'] = 'Servbook';

$config['google_client_id'] = 'xxxxx.apps.googleusercontent.com';

$config['google_client_secret'] = 'xxxxx';

$config['google_api_key'] ='xxxxx';

How to get Google API Credentials?

Google Calendar Synchronization Steps

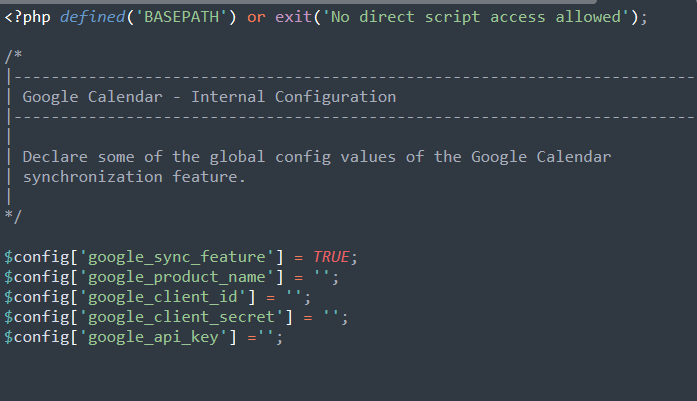

Step 1:

Need to add the Google synchronization details on application/config/google.php file. Refer to the screenshot.

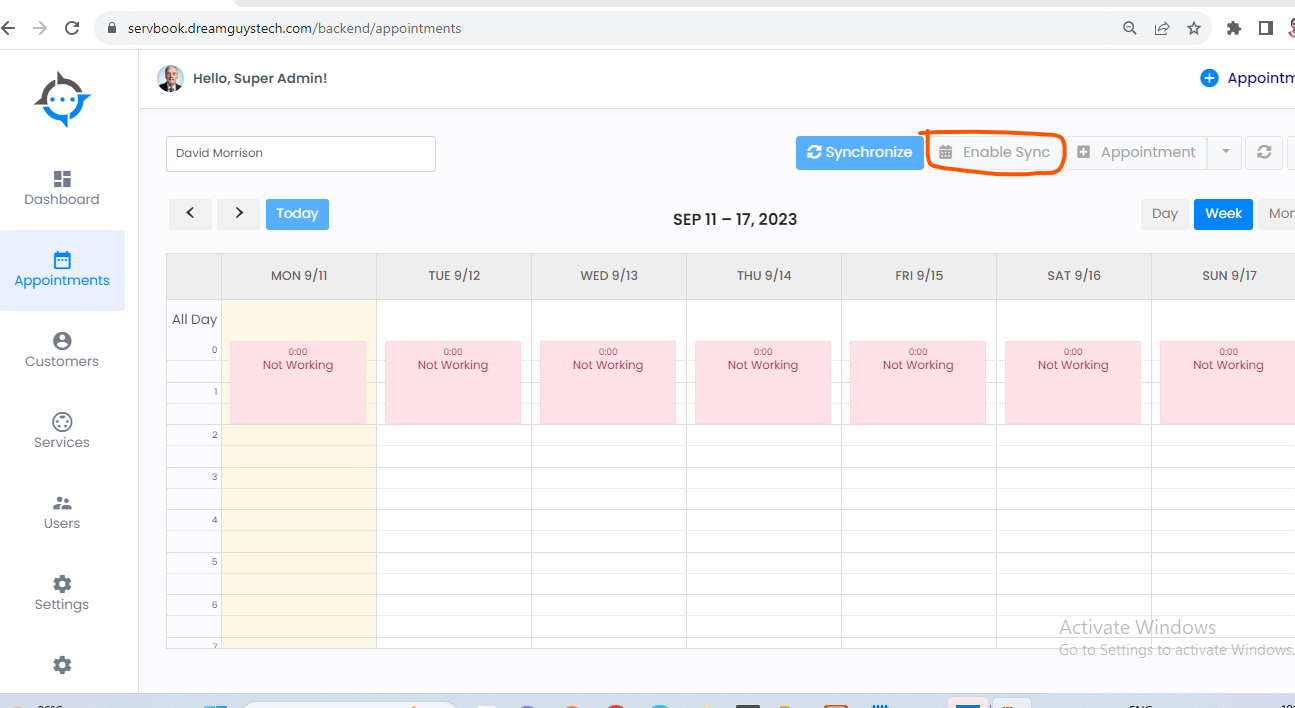

Step 2:

To click the Enable Sync button to enable Google calendar synchronization.

Step 3:

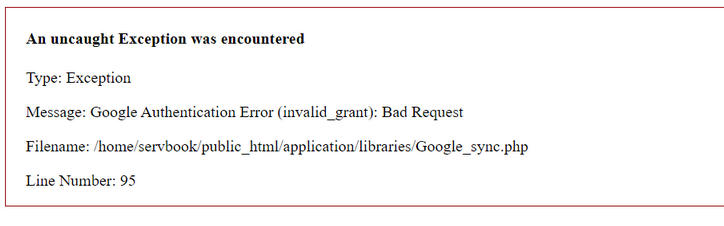

If your Google sync keys are wrong. It's getting a Bad Request error message.

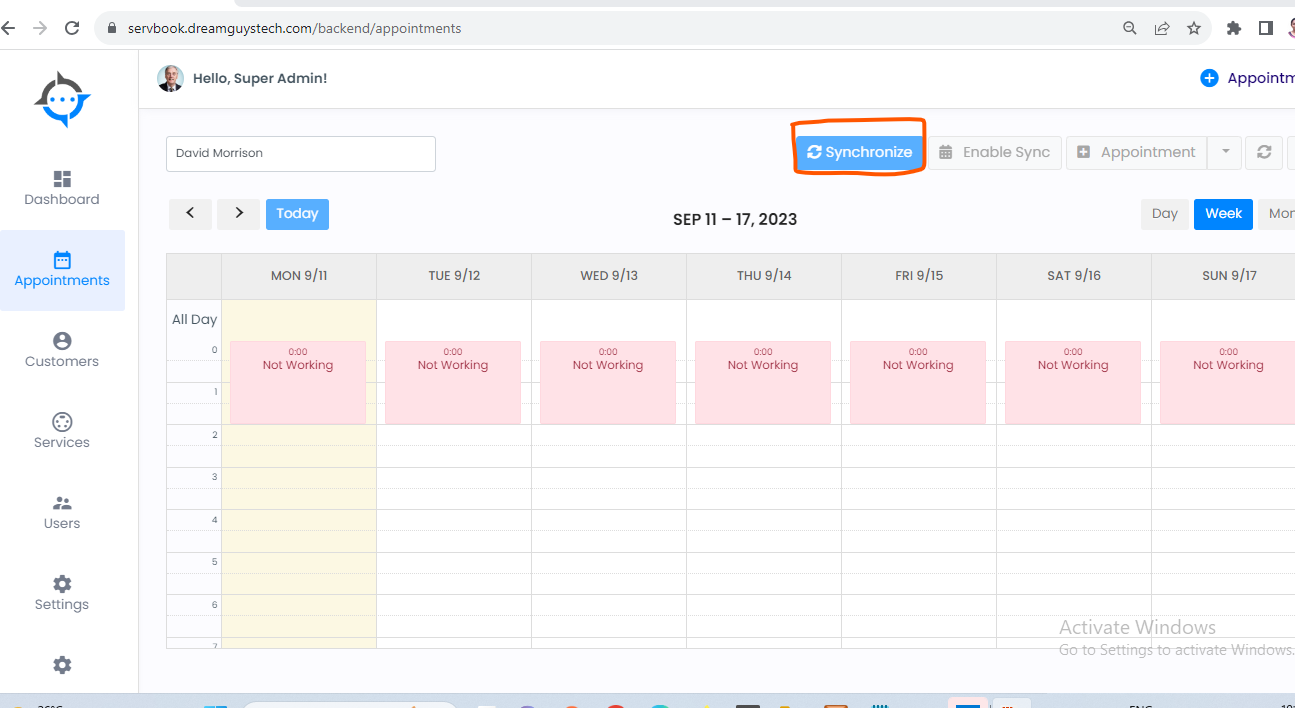

Step 4:

Once your synchronization is successfully enabled then you click the synchronize button to Sync the google calendar.

Fonts and Styles used:

• Fonts — Poppins and Nunito

• Styles — Go to /resources/assets/sass/style.css and here you can add style

Support

If you have any queries please contact us through email: [email protected]

Features

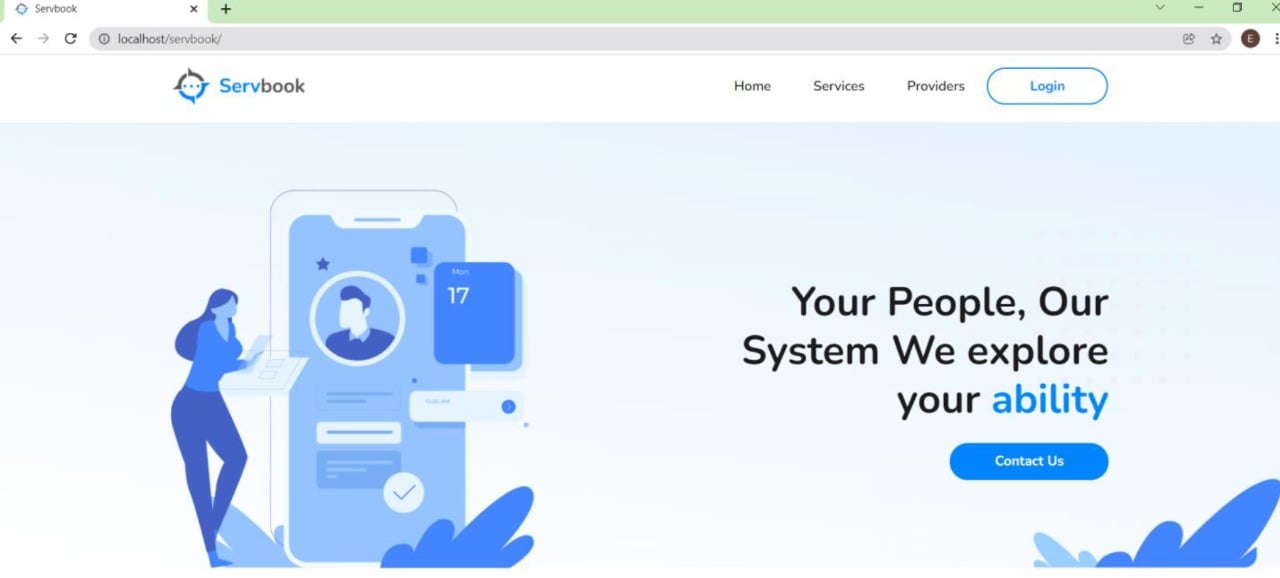

Landing page:

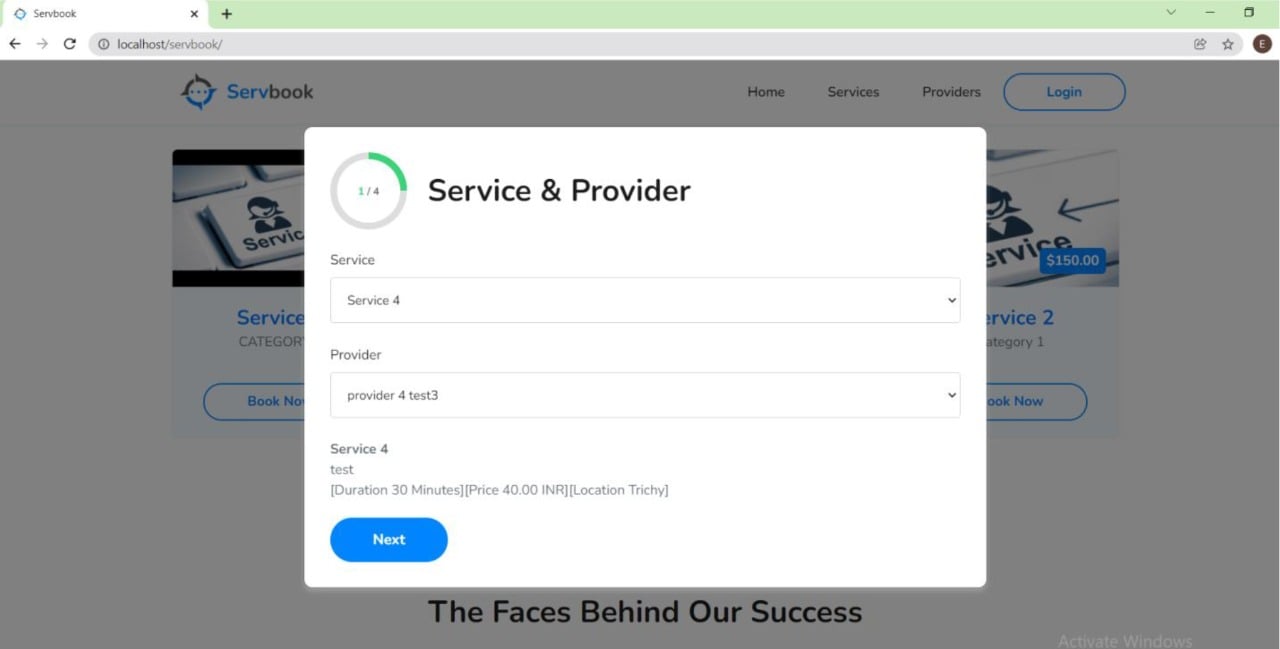

Front Service & Provider booking:

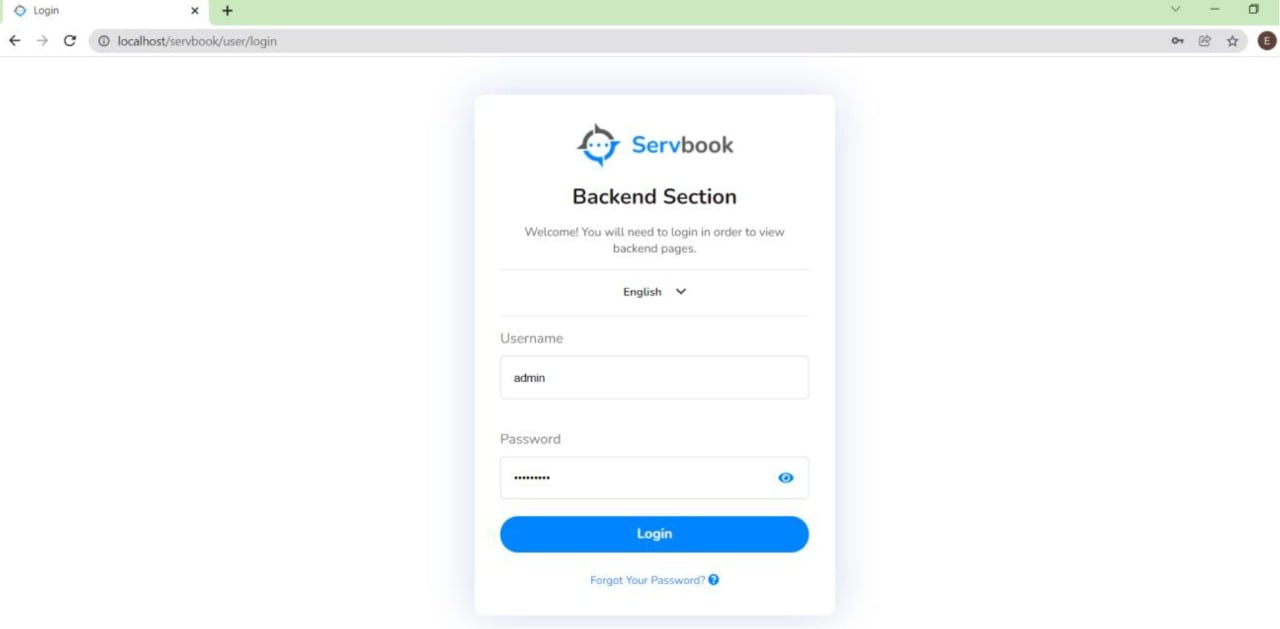

Admin login:

Click “Login” menu in header or go to

“http://localhost/servbook/user/login” this path

1. Login - Enter the username and password details for login.

Admin login:

Username : admin

Password: admin

Admin login:

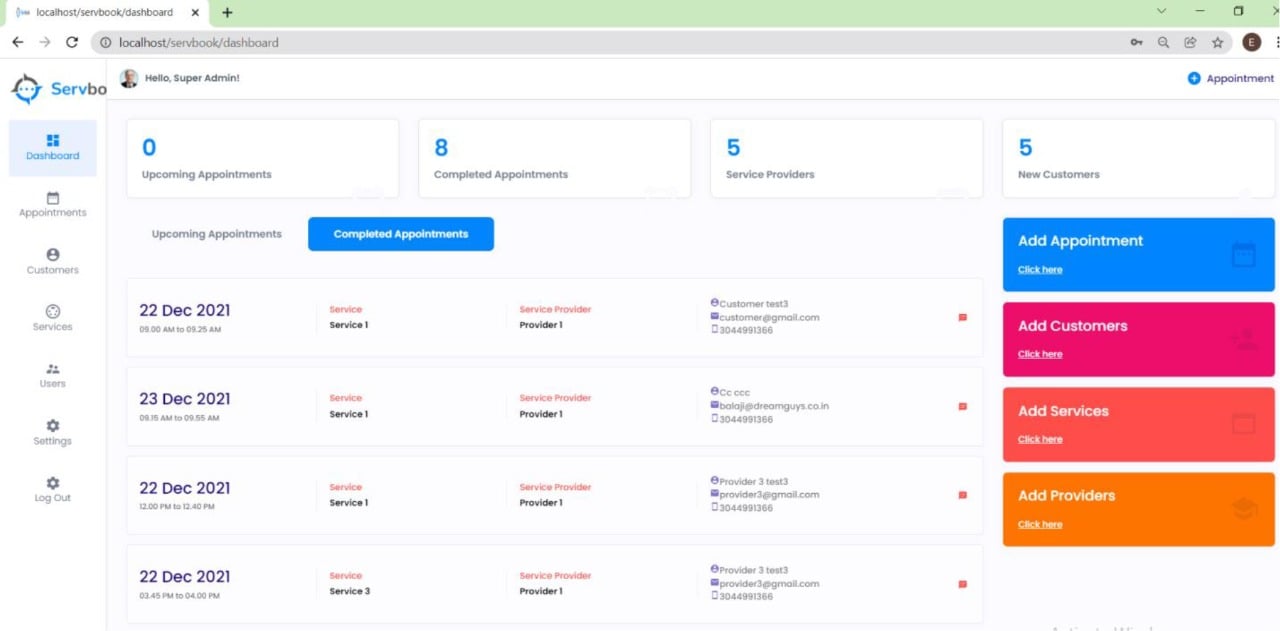

2. Dashboard - After successful login, below details will be there in dashboard:

Admin Dashboard:

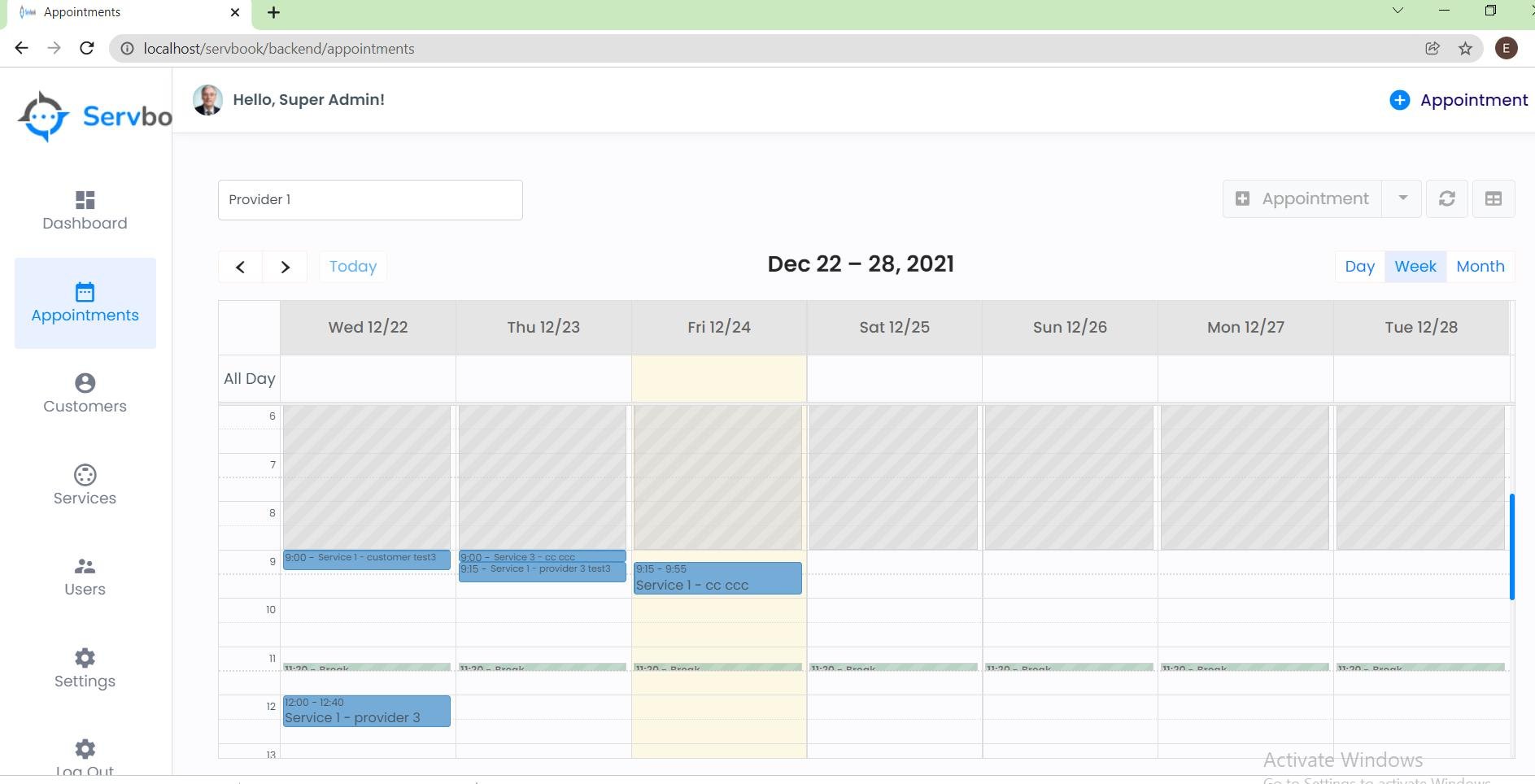

3. Appointment - View all appointment details in calendar day, week, and month view (Once Google calendar is enbled you will see "Enable Sync" & "Synchroniz" button)

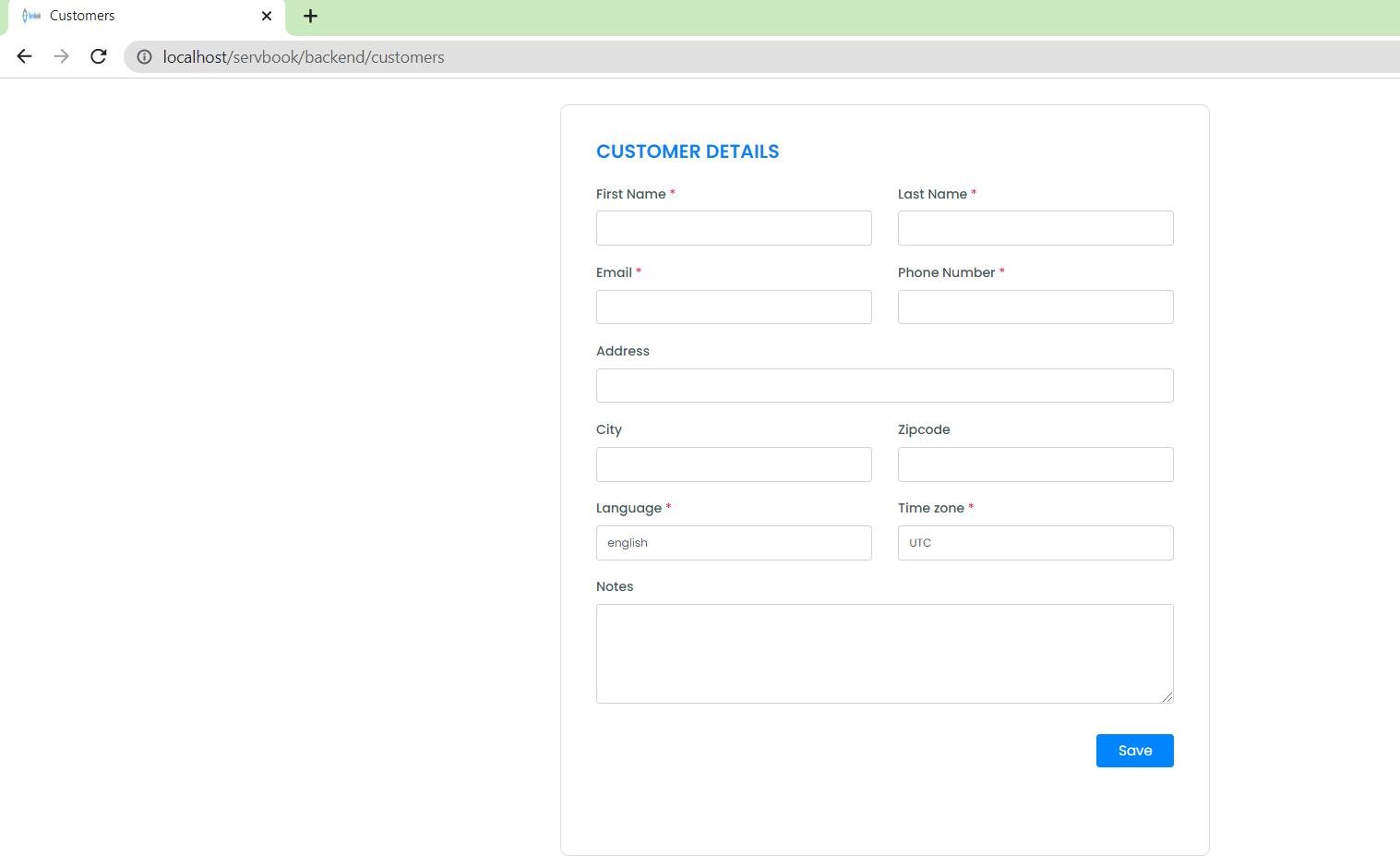

4. Customer Create - For creating a new customer, Enter all the details.

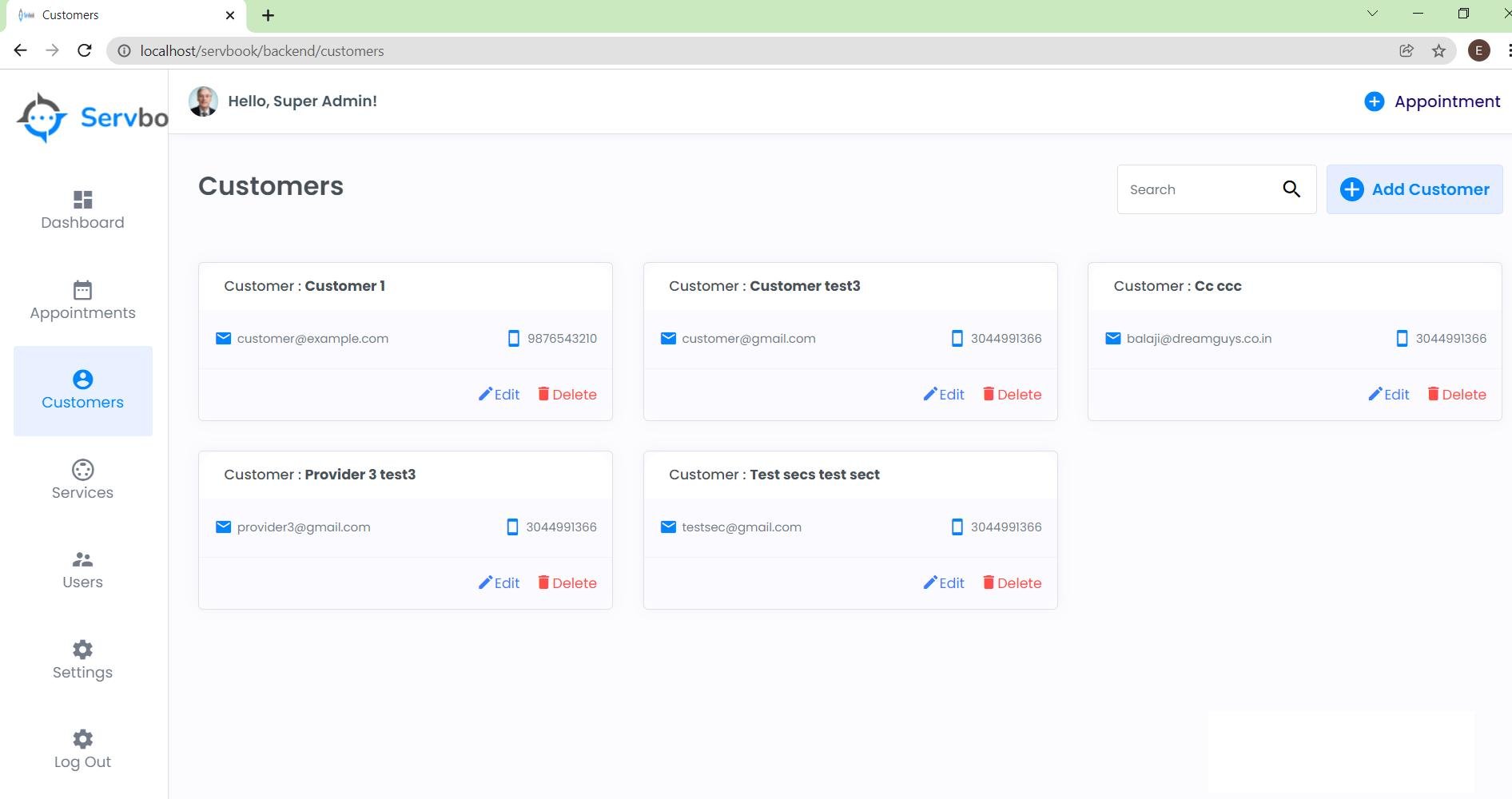

5. Customer List - Once created a customer, we can check that all customers.

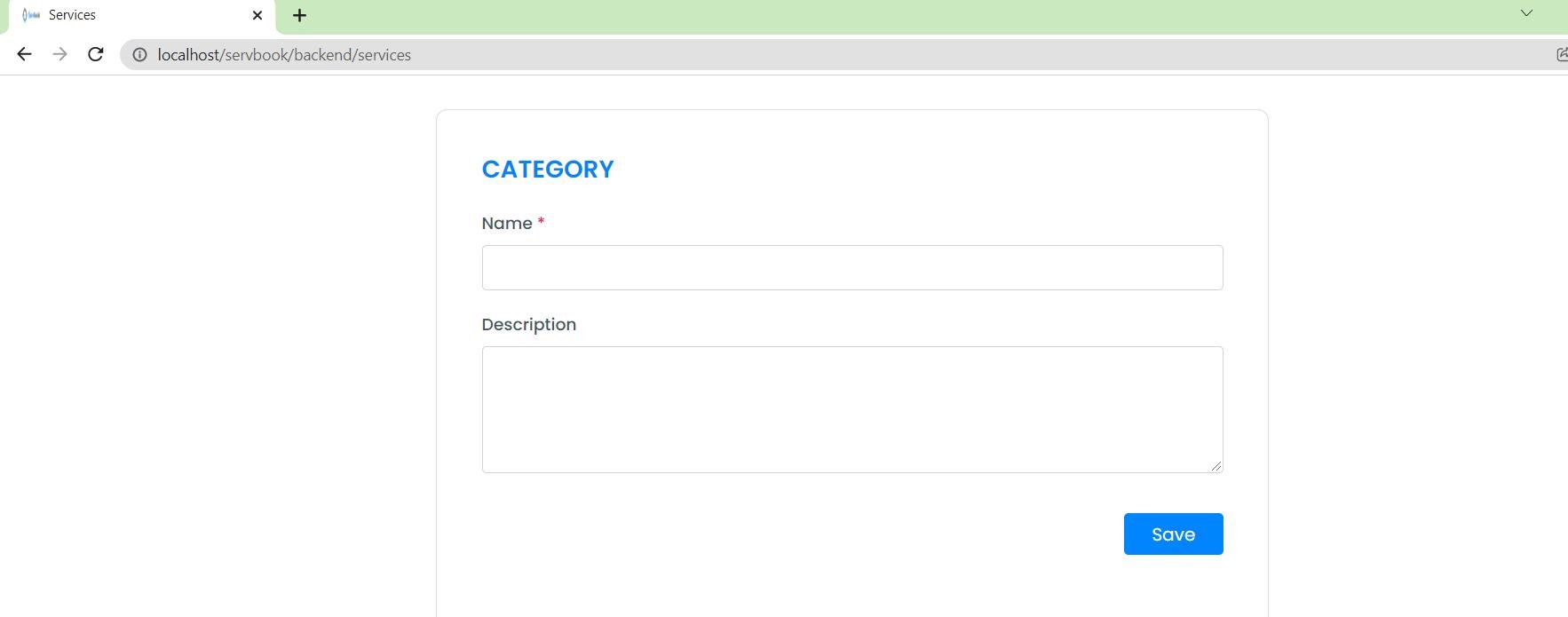

6. Add Category:

For creating a new Category, enter all the details.

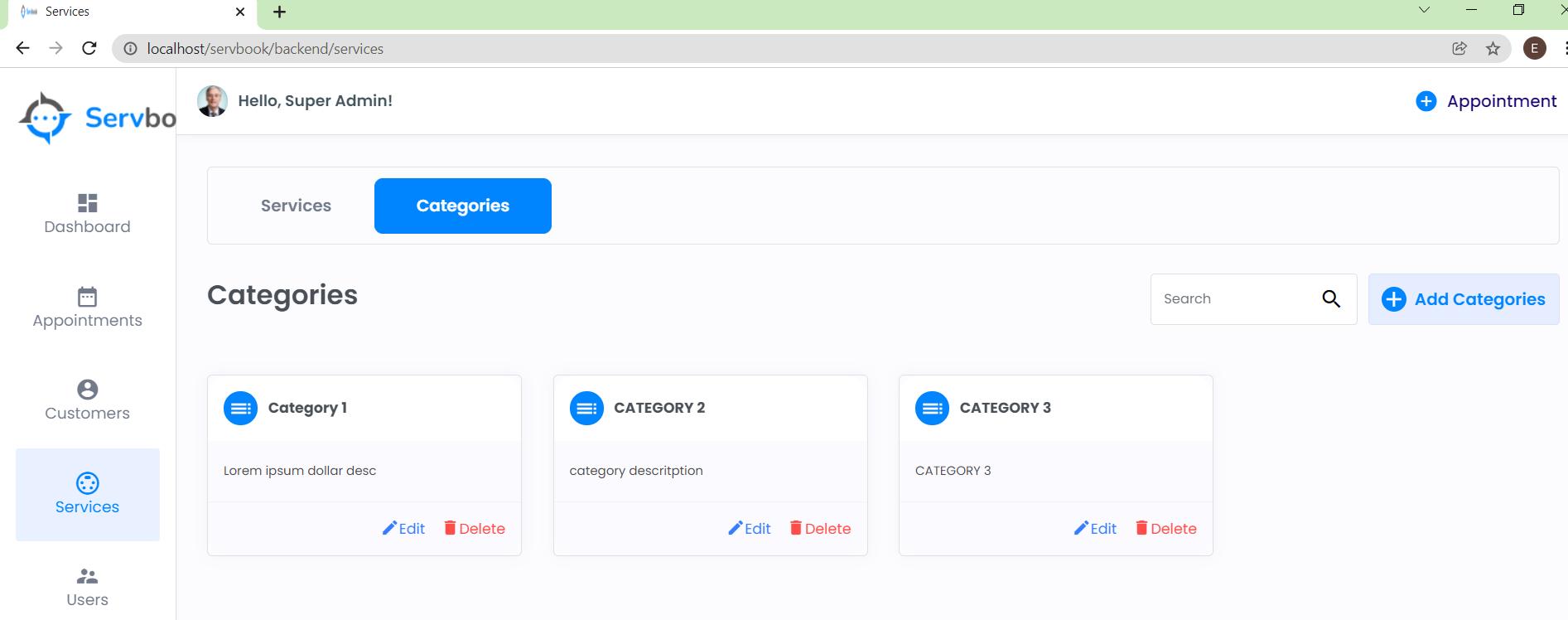

7. Category List:

Once created a Category, we can check that all Category

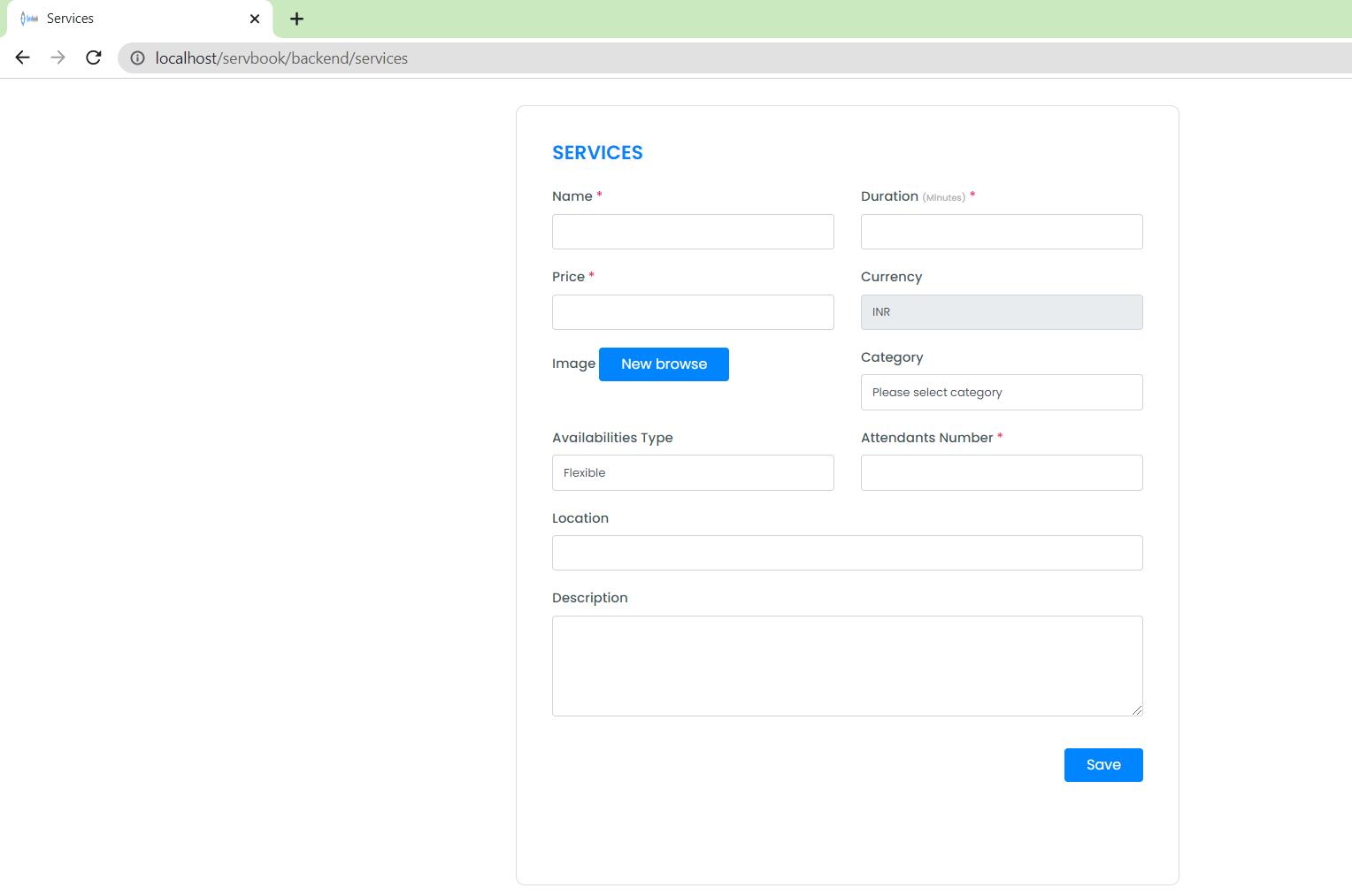

8. Create service:

For creating a new service, enter all the details.

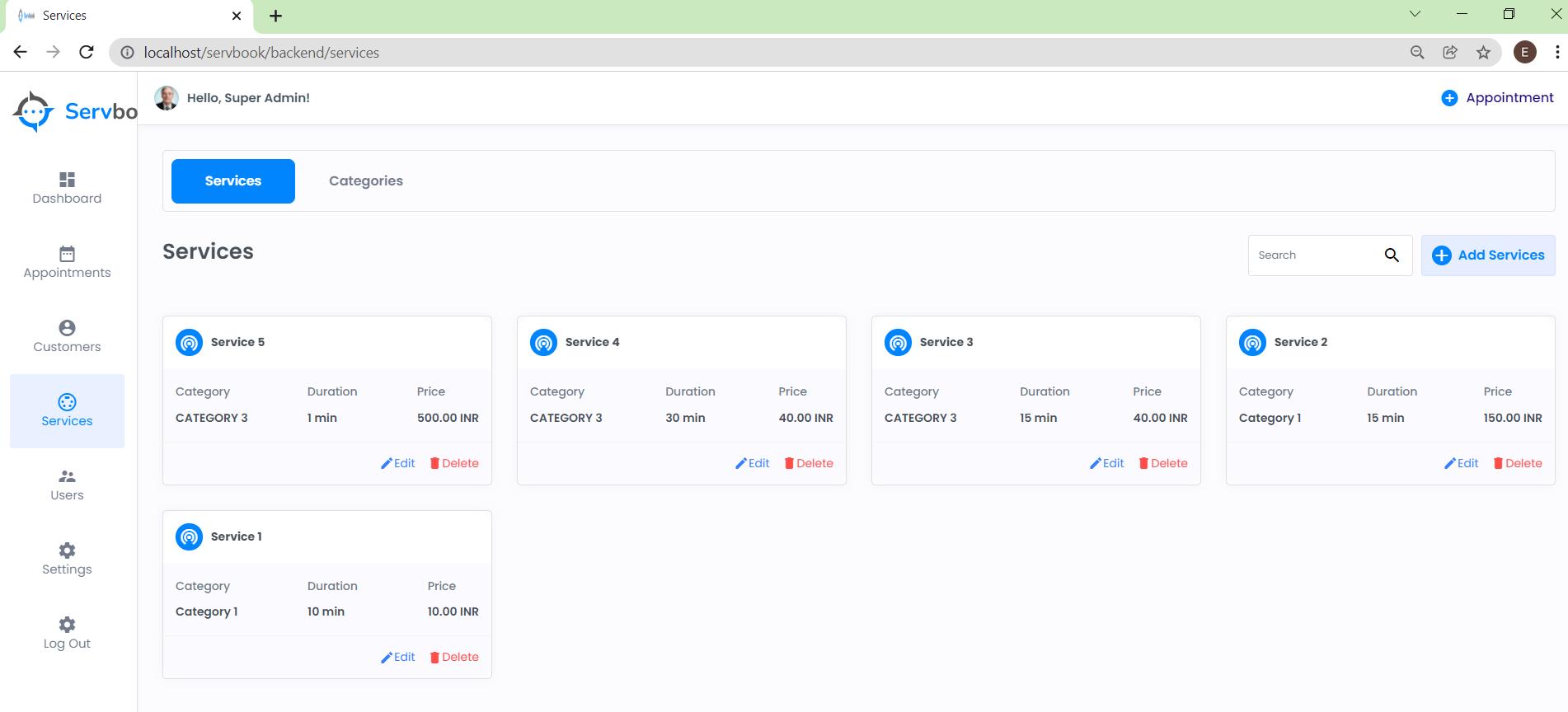

9. Service list:

Crated all service list shown here,

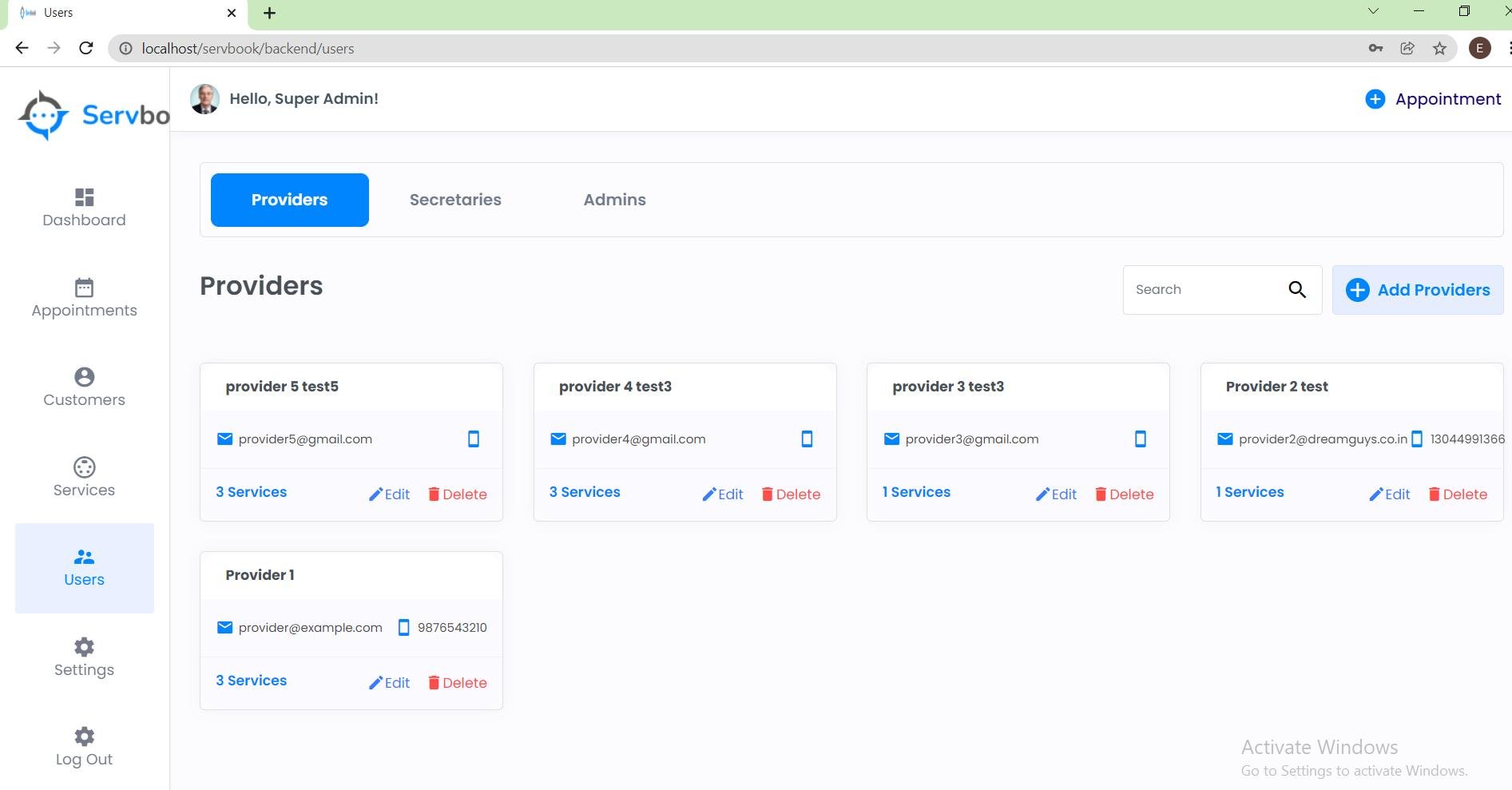

10. Provider list:

All service provider list shown this screen

11. Admin settings:

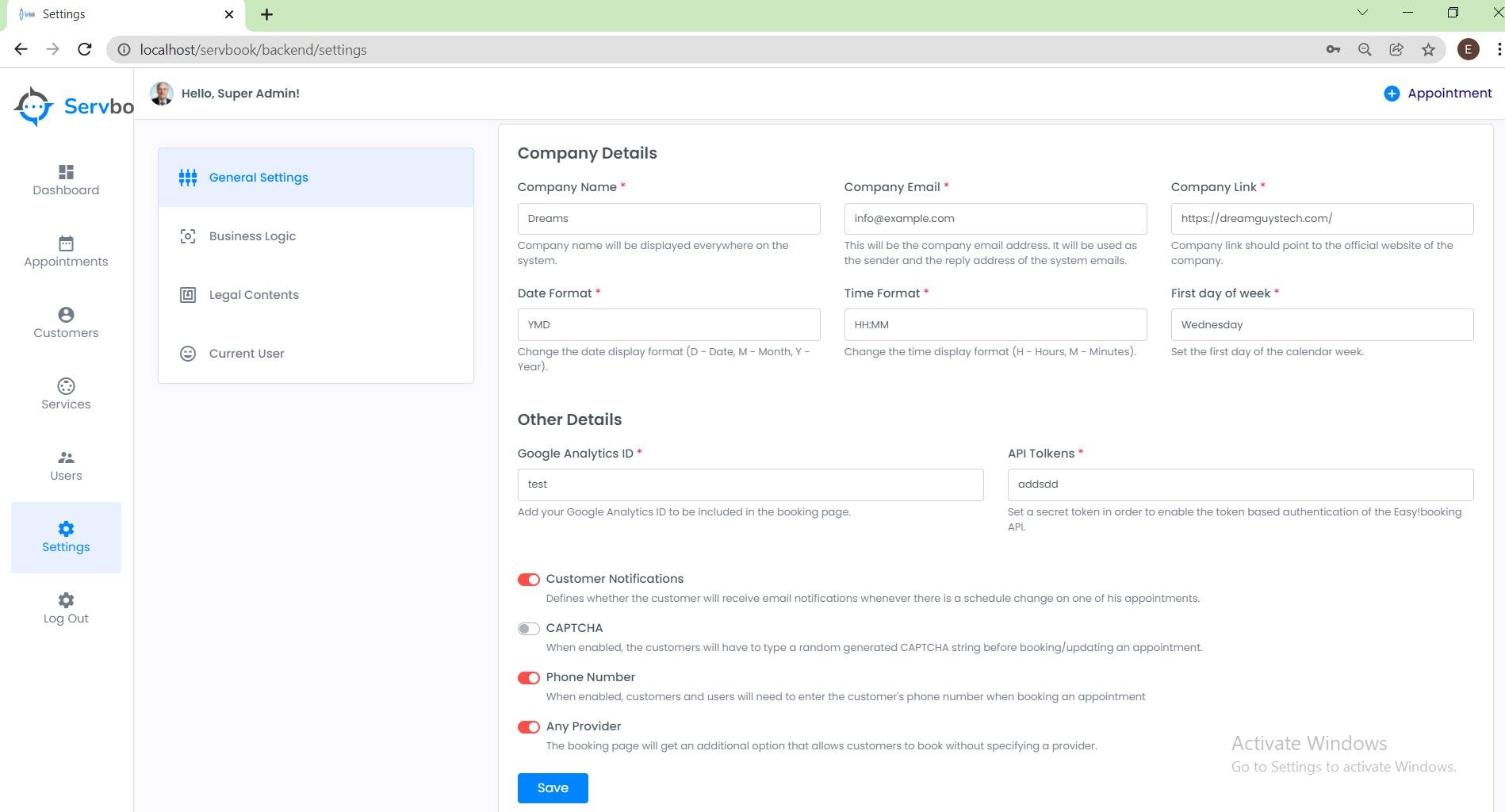

A. General settings:

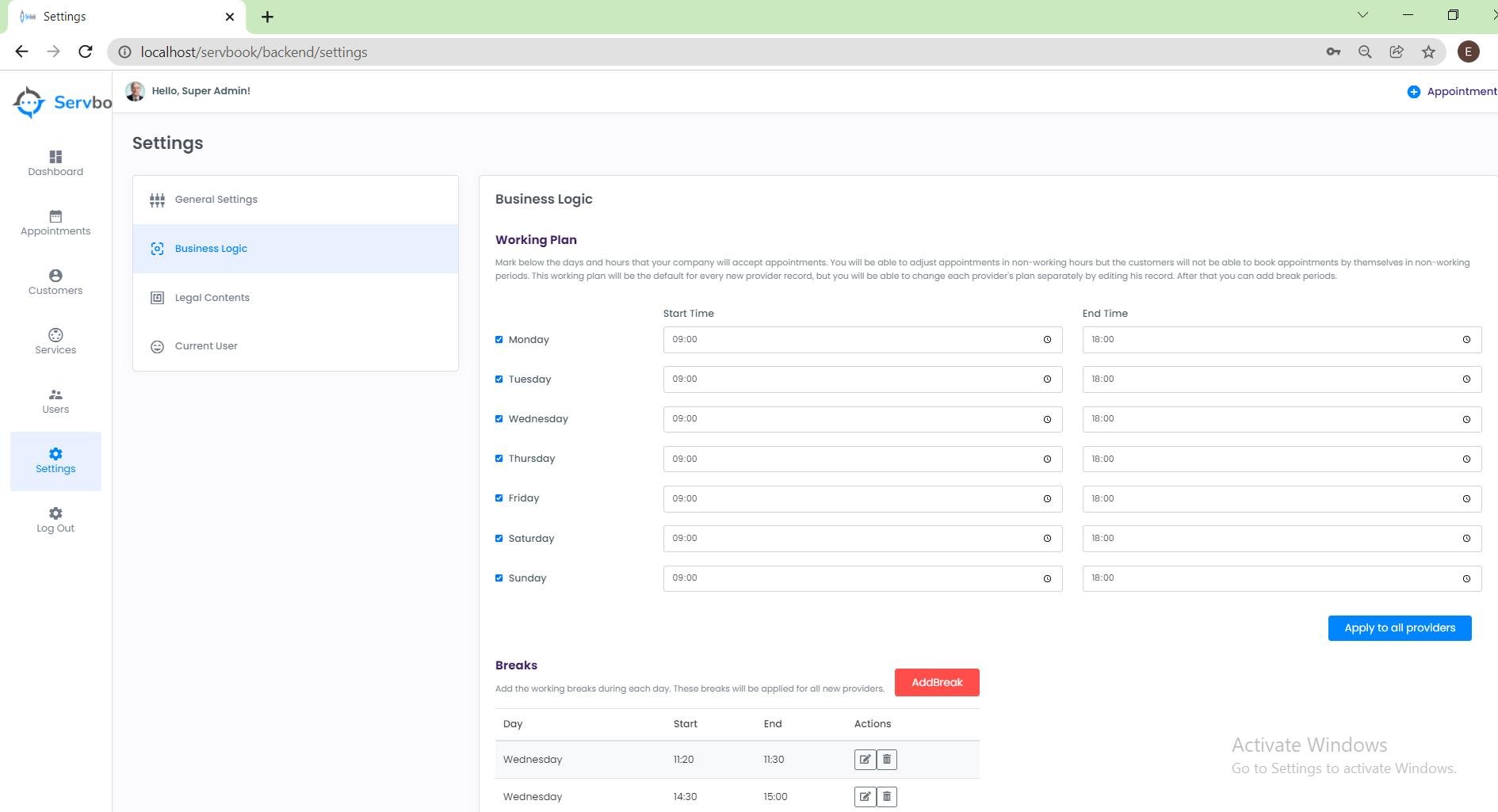

B.Business Logic:

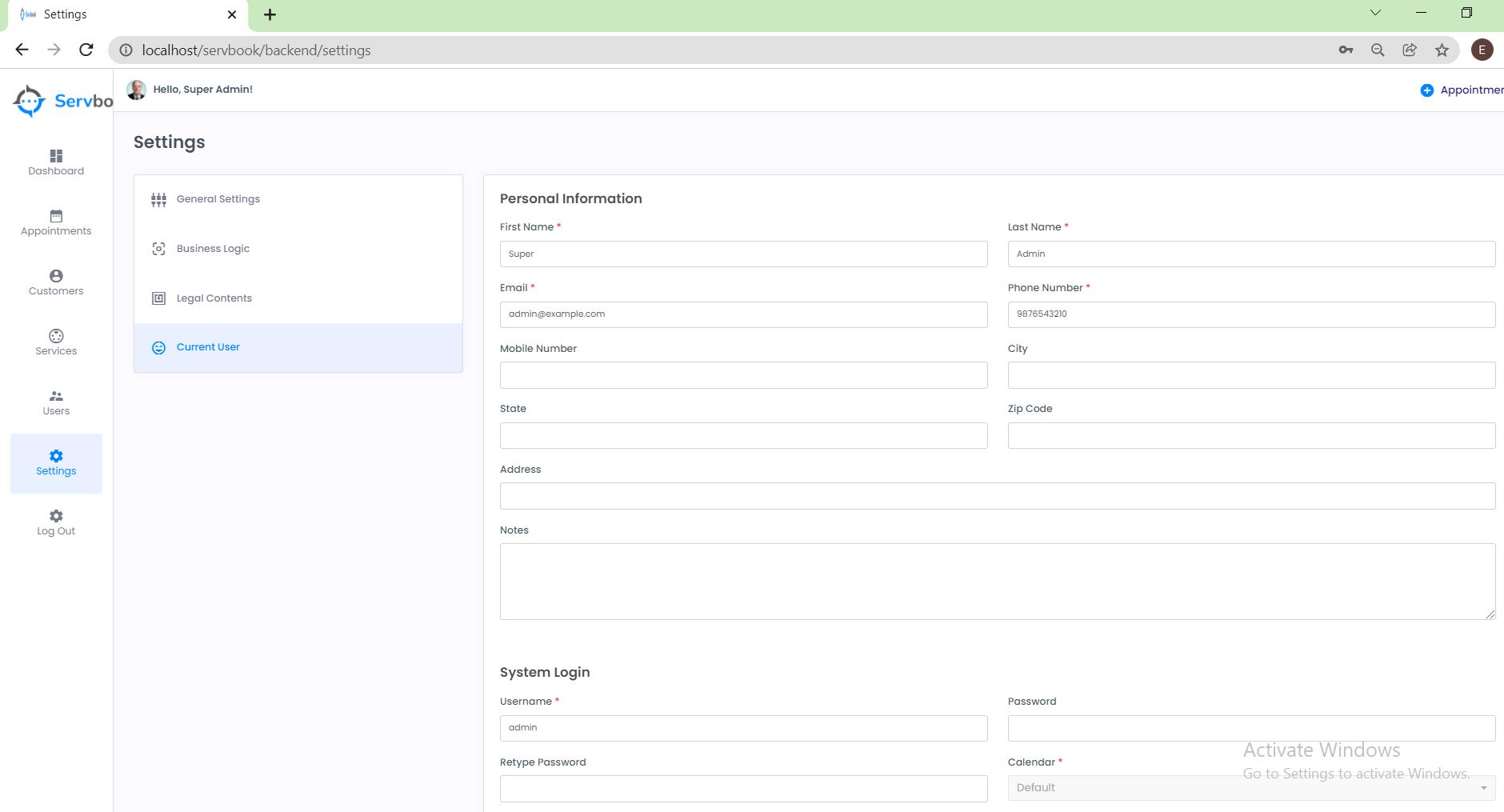

C. current user (admin)
